X10SL7‑F Motherboard

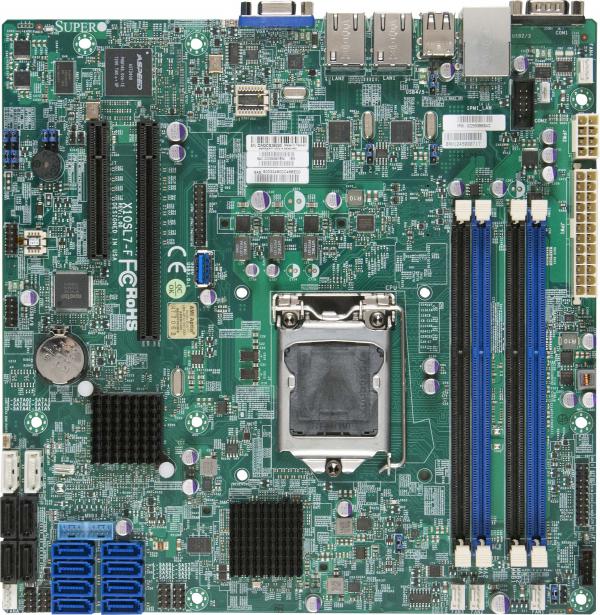

Supermicro X10SL7-F MicroATX Server Motherboard

The Supermicro X10SL7-F is a highly reliable MicroATX server-class motherboard designed for performance and manageability. Ideal for entry-level servers, NAS systems, and small-scale virtualization hosts, it offers powerful onboard SAS capabilities, IPMI remote management, and support for the Intel® Xeon® E3-1200 v3/v4 processor families.

Overview

• Model: MBD-X10SL7-F (Discontinued/EOL)
• Form Factor: MicroATX (9.6″ x 9.6″)
• Socket: LGA 1150 (H3)
• Chipset: Intel® C222 Express

CPU Support

• Intel® Xeon® E3-1200 v3/v4 Series
• Intel® Core™ i3 (4th Gen)
• Intel® Pentium® and Celeron®

Memory

• Up to 32GB DDR3 ECC UDIMM
• 4x 240-pin DIMM slots
• DDR3-1600MHz
• 1.35V / 1.5V
• ECC single-bit correction

Storage

• 2x SATA3 (6Gbps), RAID 0,1
• 4x SATA2 (3Gbps), RAID 0,1,5,10
• 8x SAS2 (6Gbps) via LSI 2308, RAID 0,1,1E,10

Expansion

• 1x PCI-E 3.0 x8 (in x16 slot)
• 1x PCI-E 2.0 x4 (in x8 slot)

Networking

• 2x Intel® I210-AT Gigabit LAN
• 1x Dedicated IPMI LAN (Realtek RTL8211E)

Graphics

• Aspeed AST2400 BMC with 64MB VRAM

Remote Mgmt

• IPMI 2.0, KVM-over-LAN, Virtual Media
• SuperDoctor® III, Watchdog

I/O Ports

• 6x USB 2.0 (4 rear, 2 headers)
• 2x USB 3.0 (1 Type-A, 1 header)
• 1x VGA
• 2x COM (1 rear, 1 header)
• 1x TPM header

BIOS

• AMI BIOS, 128Mb SPI Flash
• ACPI 5.0, USB keyboard, DMI 2.7 (SMBIOS)

Power & Mgmt

• ACPI support
• Auto power-on after AC loss
• SuperDoctor® monitoring
• Switch override, modem ring-on

Monitoring

• 5x 4-pin PWM fan headers
• Fan control & tachometer
• Thermal: CPU, chassis, PECI, FC logic
• Voltage: +12V, +5V, +3.3V, standby
• Status LEDs: Overheat, intrusion, system

Environment

• Operating Temp: 0°C ~ 50°C
• Storage Temp: -40°C ~ 70°C
• Operating Humidity: 8% – 90%
• Storage Humidity: 5% – 95%
