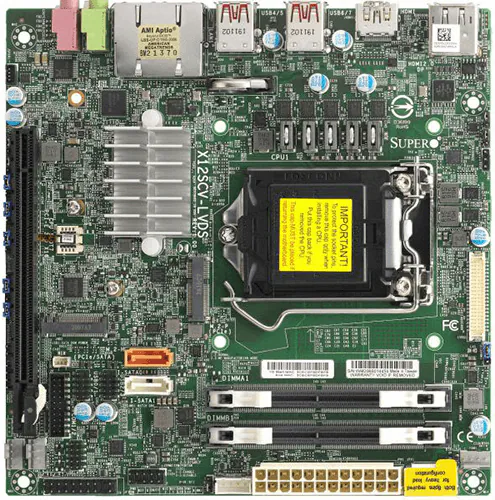

Supermicro X12SCV-LVDS

Product SKU

• Model: MBD-X12SCV-LVDS

Physical Stats

• Form Factor: Mini-ITX
• Dimensions: 6.7″ x 6.7″ (17.02cm x 17.02cm)

Processor

• Supported CPUs: Intel® Xeon® W-1200, 11th/10th Gen Intel® Core™ i9/i7/i5/i3
• Socket: Single Socket H5 (LGA-1200)
• Max TDP: Up to 65W
• Cores: Up to 10 cores
• Note:
  • Motherboard supports up to 65W TDP. Ensure thermal capability of your system.
  • Does not support Intel 10th/11th Gen 2M cache SKUs.

System Memory

• Slots: 2 DIMM slots
• Max Capacity: Up to 64GB ECC/non-ECC DDR4 SO-DIMM
• Memory Speed: 2933/2666/2400/2133 MT/s
• Supported Sizes: 4GB, 8GB, 16GB, 32GB
• Voltage: 1.2V
• Error Detection: ECC – Corrects single-bit, detects double-bit errors

On-Board Devices

• Chipset: Intel® W480E
• SATA: 2 x SATA3 (6 Gbps), RAID 0/1
• Graphics:
  • Intel® HD Graphics
  • Supports 3 independent displays via HDMI 2.0a, HDMI 1.4, DP, LVDS
• Audio: Integrated (details not specified)
• Network:
  • 1 x Intel® PHY I219LM LAN controller
  • 1 x Intel® Ethernet Controller I210-AT

Input / Output

• SATA Ports: 2 x SATA3 (6Gbps)
• LAN Ports: 2 x RJ45
• Video Outputs: 2 x HDMI, 1 x LVDS
• Serial Ports: 2 COM ports via 1 header
• DOM: 1 x SuperDOM port
• TPM: 1 TPM Header & Chip (TPM 2.0)

Expansion Slots

• PCIe: 1 x PCIe 3.0 x16 (16/NA or 8/8)
• M.2:
  • 1 x CNVi/PCIe 3.0 x1 (E-Key, 2230)
  • 1 x SATA/PCIe 3.0 x4 (M-Key, 2242/2280)

System BIOS

• Type: AMI UEFI
• Features: ACPI 6.1, SMBIOS 3.1, PCI FW 3.0, UEFI 2.7, RTC Wakeup

Management

• Software:
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • SuperServer Automation Assistant (SAA)

Power Configurations

• ATX Power connector
• +12V DC Power Input
• ACPI / ACPM Power Management

Security

• Hardware: Trusted Platform Module (TPM) 2.0

PC Health Monitoring

• Voltage Monitoring: VBAT, +3.3V, +1.8V, CPU voltages, PCH, Chipset, etc.
• Temperature Monitoring: CPU, System, PCH
• Fans: 3 x 4-pin headers, PWM control, Tachometer monitoring
• LED: Power LED

Other Features

• Wake-on-LAN (WOL)
• Chassis Intrusion Header
• M.2 NGFF Connector
• RoHS Compliant
• Supports 12V DC or ATX Power Source

Operating Environment

• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Non-Operating Temperature: -40°C to 85°C (-40°F to 185°F)
• Operating Humidity: 10% to 85% (non-condensing)
• Non-Operating Humidity: 10% to 95% (non-condensing)
