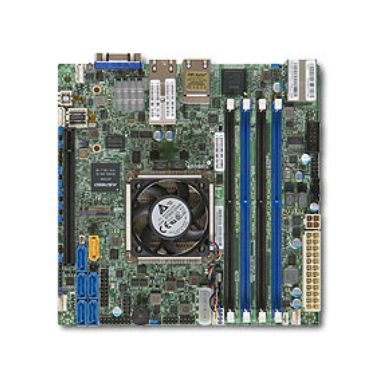

Supermicro Motherboard X10SDV-TLN4F (Retail)

Original price was: £ 1,169.Current price is: £ 974. (20% VAT.Inc)

  • Model: Supermicro MBD-X10SDV-TLN4F-O

  • Form Factor: Mini-ITX (Compact server board)

  • Processor: Intel Xeon D-1541 (8-core, 45W TDP)

  • Memory: Up to 128GB DDR4 ECC/Non-ECC (4 DIMM slots)

  • Storage: 6x SATA III ports

  • Networking: 5x Gigabit Ethernet LAN ports + 1x IPMI port

  • Expansion Slot: 1x PCIe x16 (Gen 3.0)

Category:

🔧 Technical Specifications

CategorySpecification
BrandSupermicro
ModelMBD-X10SDV-TLN4F-O
Form FactorMini-ITX
Component ForServer
Processor ManufacturerIntel
Processor SocketBGA 1667
Max TDP45 W
Processor Cores Supported8
Number of Processors Supported1
Number of DIMM Slots4
Supported Memory TypesDDR4-SDRAM
Memory Voltage1.2 V
ECC SupportYes
Non-ECC SupportYes
Memory Clock Speeds1600 / 1866 / 2133 MHz
Max Internal Memory128 GB
Max RDIMM Memory128 GB
Max UDIMM Memory64 GB
Storage InterfaceSATA III
Number of SATA III Ports6
Onboard GraphicsAspeed AST2400
USB 2.0 Headers4
COM Ports1
Chassis IntrusionYes
USB 3.2 Gen 1 Ports (Rear)2 x Type-A
VGA (D-Sub)1
Ethernet LAN Ports (RJ-45)5
IPMI LAN PortYes
Wi-FiNo
Expansion Slots1 x PCIe x16 (Gen 3.0)
BIOS TypeAMI
BIOS Memory128 Mbit
ACPI Version4.0
TPMYes (v1.2)
Operating Temperature0 – 60 °C
Dimensions (W x D)170 x 170 mm (6.69″ x 6.69″)
Sustainability CertificationRoHS
