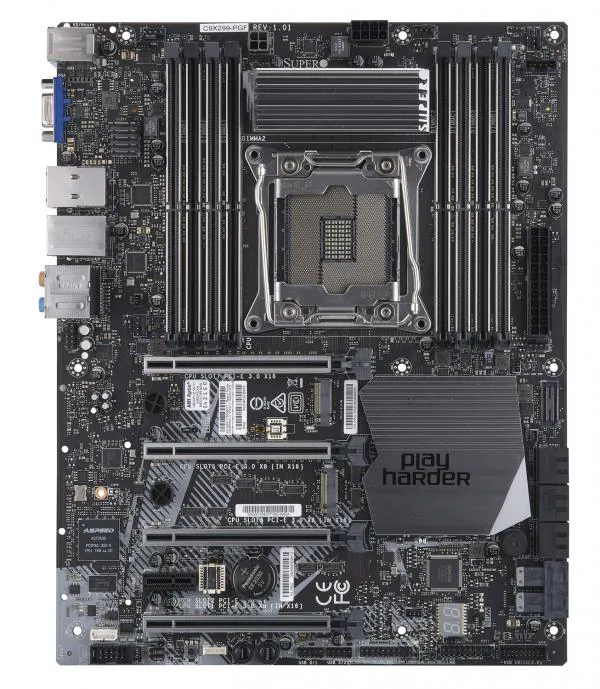

Supermicro C9X299-PGF

Product Information

• SKU: MBD-C9X299-PGF / C9X299-PGF
• Status: Discontinued (EOL) – Please contact a sales representative for replacement SKUs.

Form Factor

• Type: ATX
• Dimensions: 12″ x 9.6″ (30.48cm x 24.38cm)

Processor / CPU Support

• Supports Intel® Core™ i9 Extreme X-series (10th Gen)
• Supports Intel® Core™ i9/i7 X-series (9th Gen)
• Supports Intel® Core™ i7 X-series (7th Gen)
• Socket: Single LGA-2066 (Socket R4)
• Supports Intel Skylake-X Refresh CPUs
• CPU TDP up to 165W

Memory

• Max Capacity: 256GB
• Type: Unbuffered Non-ECC DDR4 UDIMM
• Speed: 2933/2666/2400/2133/1866/1600 MHz
• Slots: 8 x 288-pin DIMM
• Supported Sizes: 4GB, 8GB, 16GB, 32GB
• Voltage: 1.2V

Chipset

• Intel® X299

Storage

• 6 x SATA3 (6Gbps) ports
• Supports RAID 0, 1, 5, 10

M.2 Support

• Interface: PCIe 3.0 x4
• Form Factors: 2280, 22110
• Key: M-Key
• RAID 0, 1 Support
• Supports SSD and Intel® Optane™ Memory

Expansion Slots

• 4 x PCIe 3.0 x16
• 1 x PCIe 3.0 x1
• Configurations:
  • 8/NA/16/16
  • 8/8/8/16
  • NA/4/8/16 (Skylake-X, 28 lanes)
  • NA/4/4/8 (Kaby Lake-X)

Network & Audio

• 1 x Intel® I210-AT Gigabit LAN
• 1 x Aquantia AQC108 5G LAN
• ALC1220 HD Audio Codec

USB & I/O Ports

• 4 x USB 2.0 (via headers)
• 4 x USB 3.2 Gen1 (2 rear, 2 via headers)
• 4 x USB 3.2 Gen2 (3 x Type-A, 1 x Type-C)
• 1 x VGA port
• 2 x RJ45 Ethernet ports
• 1 x COM port header

IPMI & Management

• ASPEED AST2500 BMC
• Software: SuperDoctor® 5, Watchdog
• Note: OOB BIOS refresh not supported

BIOS

• UEFI BIOS (128Mb)

Monitoring & Cooling

• 5 x 4-pin fan headers (PWM + tachometer)
• Fan speed control
• Overheat LED indication
• Voltage Monitoring: +12V, +5V, +3.3V, 1.05V (PCH), 1.2V (VDIMM), 3.3V standby, CPU voltage, VBAT
• Chassis intrusion detection header

Power & Other Features

• ATX Power connector
• ACPI power management
• Power-on control for AC recovery
• Intel Smart Response Technology
• CPU Thermal Trip Support
• Voltage and Frequency Overclocking Support
• Wake-on-LAN (WOL)
