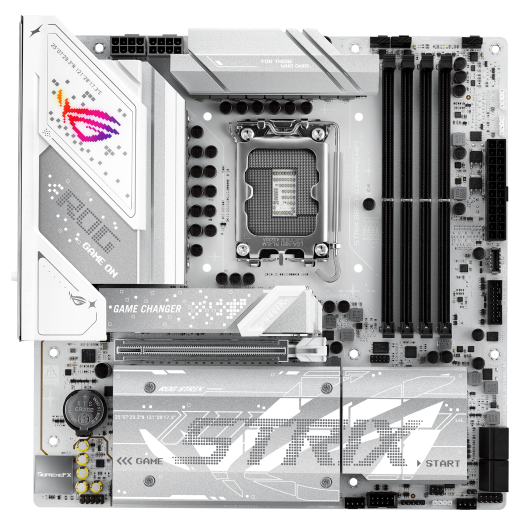

ROG STRIX B860-G GAMING WIFI Motherboard

Product Description

Engineered for next-gen AI and high-performance computing, this motherboard supports the latest Intel® Core™ Ultra Series 2 processors, delivering advanced connectivity, powerful memory support, robust thermal solutions, and user-friendly DIY features. Ideal for gamers, creators, and enthusiasts looking for a future-ready platform.

Key Specifications

• CPU Support: Intel® Core™ Ultra Series 2 Processors
  Supports Intel® Turbo Boost Technology 2.0 and 3.0
• Chipset: Intel® B860 Chipset
• Memory:
  • 4 x DDR5 DIMM slots, up to 256GB
  • Supports 9066+ MT/s (OC), dual channel
  • Supports Intel® XMP & ASUS Enhanced Memory Profile III (AEMP III)
  • DIMM Fit technology for easy installation
• Graphics Output:
  • 1 x HDMI™ 2.1 (4K@60Hz)
  • 1 x DisplayPort 1.4 (4K@60Hz)
  • 1 x Thunderbolt™ 4 with DisplayPort support (up to 8K@60Hz)
• Expansion Slots: 1 x PCIe 5.0 x16 SafeSlot (Q-Release Slim)
• Storage:
  • 4 x M.2 slots (1x PCIe 5.0, 3x PCIe 4.0)
  • 4 x SATA 6Gb/s ports, RAID 0/1/5/10 supported
• Networking:
  • Intel® 2.5Gb Ethernet with ASUS LANGuard
  • Wi-Fi 7 (802.11be), 2×2 with Q-Antenna
  • Bluetooth® v5.4
• USB Ports:
  • Rear I/O (10 ports): 1 x Thunderbolt™ 4 (USB-C®), 1 x USB-C® 20Gbps, 1 x USB-A 10Gbps, 3 x USB-A 5Gbps, 4 x USB 2.0
  • Front Panel: 1 x USB-C® 10Gbps, 1 x USB 5Gbps header (for 2 ports), 2 x USB 2.0 headers (for 3 ports)
• Audio:
  • Realtek ALC1220P 7.1 Surround Sound HD Audio CODEC
  • Savitech SV3H712 AMP, Dolby Atmos®
  • 120 dB SNR playback, 113 dB SNR recording
  • Optical S/PDIF out, premium capacitors, and isolated audio PCB
• Back Panel I/O:
  • 1 x Thunderbolt™ 4 USB-C®
  • 1 x USB-C® 20Gbps
  • 1 x USB-A 10Gbps, 3 x USB-A 5Gbps, 4 x USB 2.0
  • 1 x HDMI™, 1 x DisplayPort
  • 2 x Audio jacks, 1 x Optical S/PDIF
  • 1 x 2.5Gb Ethernet, 1 x Wi-Fi Module
  • BIOS FlashBack™ and Clear CMOS buttons
• Internal Headers:
  • 4 x M.2, 4 x SATA
  • 1 x USB-C® 10Gbps, 1 x USB 5Gbps header, 2 x USB 2.0 headers
  • 3 x Gen 2 RGB headers, front panel, thermal sensor
  • 4 x 4-pin fan headers (CPU, CPU OPT, AIO, Chassis)
• DIY Features:
  • Q-Latch, Q-LED, Q-Release (PCIe & M.2), Q-Antenna
  • BIOS FlashBack™, Pre-mounted I/O shield, SafeSlot, SafeDIMM
• Cooling:
  • Heatsinks for VRM and M.2
  • M.2 backplate for additional thermal efficiency
• Lighting: Aura Sync RGB with 3x Gen 2 addressable headers
• Software Bundle:
  • ASUS Armoury Crate, AI Advisor, GlideX, TurboV Core
  • Dolby Atmos, ROG CPU-Z, Fan Xpert 4
  • 60-day AIDA64 Extreme, 30-day Adobe Creative Cloud Trial
  • 60-day Norton 360 for Gamers, 40-day WinRAR Trial
• UEFI BIOS: ASUS UEFI with EZ Mode, CrashFree BIOS 3, EZ Flash, MyHotkey, AI Overclocking Guide
• Form Factor: micro-ATX (24.4 x 24.4 cm)
• OS Support: Windows 11 (22H2 or later)

Box Contents

• 2 x SATA 6Gb/s cables
• ASUS WiFi Q-Antenna
• 1 x M.2 Q-Latch, Q-Slide, and rubber kits
• ROG keychain and sticker set
• Quick Start Guide
• Cable ties
