Accuracy: ±0.075%FS or ±0.05%FS
Measurement Range: -0.1 to 60 MPa
Overload Capacity: 1.5× full scale
Material: High-grade stainless steel for durability and corrosion resistance
Power Supply: 24V
Temperature Drift: ≤0.01%FS/°C
Output Signal Options: 4–20mA, 0–5V, 0–10V
Operating Temperature Range: -20°C to 70°C
Ideal for: Industrial pressure monitoring in harsh environments

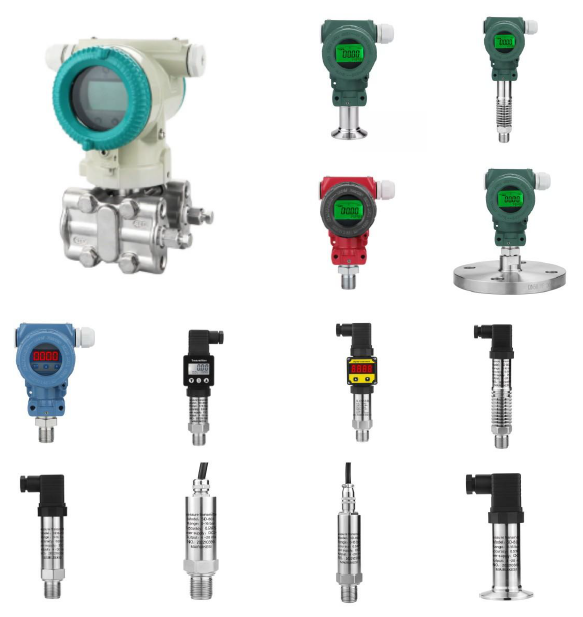

Pressure transmitter
- All sort of pressure transmitters
- Check below description
- Get quote for more details
- Differential pressure transmitter
- Explosion-proof pressure transmitter
- Sanitary digital pressure transmitter
- High temperature explosion-proof pressure transmit
- Digital Pressure Transmitter
- Description
- Reviews (0)
Accuracy Options: ±0.2%FS, ±0.4%FS, ±0.5%FS
Pressure Range: -0.1 to 100 MPa
Overload Capacity: 1.5× full scale
Material: Die-cast aluminum body with stainless steel joints
Power Supply: 24V DC
Temperature Drift: ≤0.01%FS/°C
Output Signal Options: 4–20mA, 0–5V, 0–10V, RS485
Thread Types Available:
NPT
BSP (G)
BSPT (ZG)
Sizes: 1/4", 3/8", 1/2", M14×1.5, M20×1.5
Operating Temperature Range: -20°C to 70°C
Designed For: High-pressure applications across industrial environments
Accuracy Options: ±0.2%FS, ±0.4%FS, ±0.5%FS
Pressure Range: 0 to 10 MPa
Overload Capacity: 1.5× full scale
Material: Die-cast aluminum housing with stainless steel joints
Power Supply: 24V DC
Temperature Drift: ≤0.01%FS/°C
Output Signal Options: 4–20mA, 0–5V, 0–10V, RS485
Thread Sizes: 50.5mm, 64mm
Operating Temperature Range: 0°C to 60°C
Suitable For: Clean-in-place (CIP) systems, sanitary and food-grade applications
High temperature explosion-proof pressure transmitter
Accuracy Options: ±0.2%FS, ±0.4%FS, ±0.5%FS
Pressure Range: -0.1 to 100 MPa
Overload Protection: 1.5× full scale
Material: High-quality stainless steel for enhanced durability and corrosion resistance
Power Supply: 24V DC
Temperature Drift: ≤0.01%FS/°C
Output Signal Options: 4–20mA, 0–5V, 0–10V, RS485
Thread Types & Sizes:
NPT
BSP (G)
BSPT (ZG)
Sizes: 1/4", 3/8", 1/2", M14×1.5, M20×1.5
Operating Temperature Range: -20°C to 250°C
Ideal For: High-temperature and high-pressure industrial environments
Accuracy Options: ±0.2%FS, ±0.4%FS, ±0.5%FS
Pressure Range: -0.1 to 100 MPa
Overload Capacity: 1.5× full scale
Material: Durable stainless steel construction
Power Supply: 24V DC
Temperature Drift: ≤0.01%FS/°C
Output Signal Options: 4–20mA, 0–5V, 0–10V, RS485
Thread Types & Sizes:
NPT
BSP (G)
BSPT (ZG)
Sizes: 1/4", 3/8", 1/2", M14×1.5, M20×1.5
Operating Temperature Range: -20°C to 70°C
Application: Suitable for a wide range of industrial pressure measurement tasks
High performance pressure gauge transmitter like these are designed to be used in challenging conditions. The circuit is processed using tiny amplifiers and silicon piezoresistive transducers. It can be directly linked to a PC, control device, intelligent device, or computer interface. Its benefits include small size, low weight, high precision, strong stability, and good seismic performance. extensively utilised in the food, chemical, petroleum, and metal industries as well as in process control, pressure, and liquid level measurement.
