- CPU Support: LGA1151 package supporting Intel® Xeon® E series, 9th and 8th Gen Intel® Core™, Pentium®, and Celeron® processors. L3 cache varies by CPU. (See CPU Support List for details)
- Chipset: Intel® C246 Express Chipset
- Memory: 4 x DDR4 DIMM sockets, up to 128GB, dual channel, supports DDR4 2666/2400/2133 MHz, ECC and non-ECC unbuffered DIMMs, and Extreme Memory Profile (XMP)
- Onboard Graphics: Integrated Intel® UHD Graphics with selected CPUs; supports up to 3 displays simultaneously.
- 1 x D-Sub port (max 1920×1200@60Hz)
- 1 x DVI-D port (max 1920×1200@60Hz; no adapter support for D-Sub)
- 1 x DisplayPort (max 4096×2304@60Hz; supports DP 1.2, HDCP 2.2, HDR)
- Max shared memory: 1GB
- Audio: Realtek® Audio CODEC, High Definition Audio, supports 2/4/5.1/7.1 channels and S/PDIF Out
- LAN: Dual Intel® GbE LAN chips (10/100/1000 Mbit)
- Expansion Slots:
- 1 x PCIe x16 slot running at x16 (PCIEX16)
- 1 x PCIe x16 slot running at x8 (PCIEX8) — shares bandwidth with PCIEX16 slot
- 2 x PCIe x1 slots (all PCIe 3.0 standard)
- Supports AMD Quad-GPU CrossFireâ„¢ and 2-Way CrossFireâ„¢
- Storage Interface:
- 2 x M.2 connectors (Socket 3, M key, types 2242/2260/2280/22110, PCIe x4/x2 and SATA support)
- 8 x SATA 6Gb/s connectors (SATA3 0~7)
- Supports RAID 0, 1, 5, 10
- Intel® Optane™ Memory Ready
- USB Ports:
- 1 x USB 3.1 Gen 2 Type-A (red) on back panel
- 7 x USB 3.1 Gen 1 ports (5 back panel, 2 internal headers)
- 4 x USB 2.0/1.1 internal ports
- Internal I/O Connectors: 24-pin ATX main power, 8-pin ATX 12V power, 2 M.2 sockets, 8 SATA 6Gb/s, 2 SATA detection headers, CPU fan header, 3 system fan headers, front panel and audio headers, USB 3.1 Gen 1 header, 2 USB 2.0 headers, S/PDIF Out header, Thunderboltâ„¢ add-in card connector, TPM header, 2 serial port headers, Clear CMOS jumper
- Back Panel Connectors: PS/2 keyboard/mouse port, D-Sub, DVI-D, DisplayPort, USB 3.1 Gen 2 Type-A (red), 5 x USB 3.1 Gen 1, 2 x RJ-45, 6 audio jacks
- I/O Controller: iTE® I/O Controller Chip
- Hardware Monitoring: Voltage, temperature, fan speed detection, overheating and fan fail warnings, fan speed control (dependent on fan)
- BIOS: 128 Mbit flash with licensed AMI UEFI BIOS; supports PnP 1.0a, DMI 2.7, WfM 2.0, SMBIOS 2.7, ACPI 5.0
- Operating Conditions:
- Operating Temp: -10°C to 50°C
- Operating Humidity: 8% – 90%
- Non-Operating Temp: -40°C to 70°C
- Non-Operating Humidity: 5% – 95%
- Unique Features: Support for APP Center apps including @BIOS, System Information Viewer, Q-Flash
- Bundled Software: Norton® Internet Security (OEM), cFosSpeed
- Operating System Support: Windows 10 64-bit
- Form Factor: Micro ATX, 24.4cm x 24.4cm

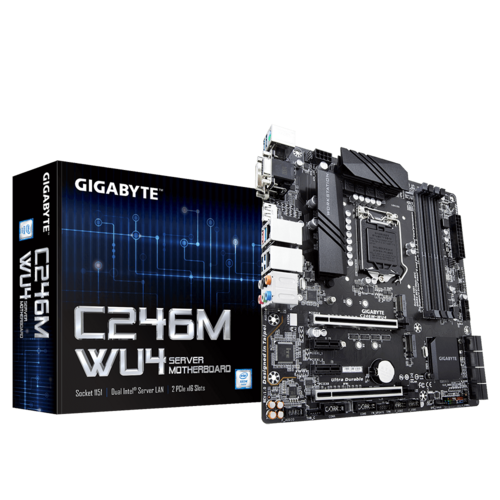

Gigabyte C246M-WU4
- CPU Support: Intel® Xeon® E, 9th/8th Gen Intel® Core™, Pentium®, and Celeron® (LGA1151)
- Memory: DDR4 ECC & Non-ECC Un-buffered support
- Expansion Slots: 2 x PCIe x16, 2 x PCIe x1
- Networking: Dual Intel® Server GbE LAN with Intel® vPro® Technology
- Storage: 8 x SATA3 ports
- M.2: Dual M.2 with Intel® Optane™ Memory support
- USB: USB 3.1 Type-A for high-speed transfer
- Display Support: Up to 3 monitor displays
- Monitoring: SGPIO support for HDD status monitoring
