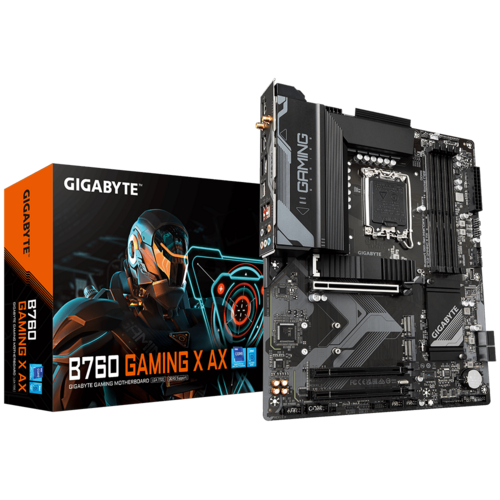

B760 GAMING X AX (rev. 1.x) Motherboard

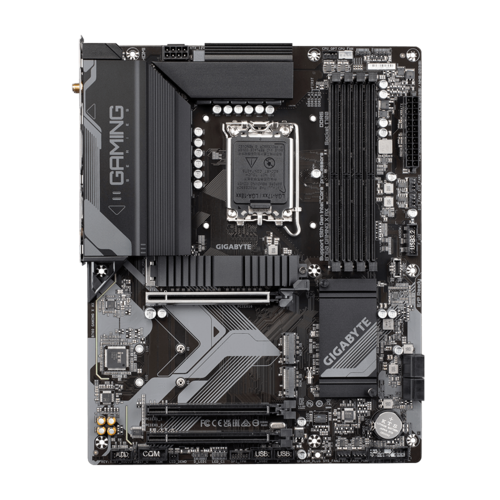

B760 GAMING X AX (rev. 1.x) Motherboard - Image 2

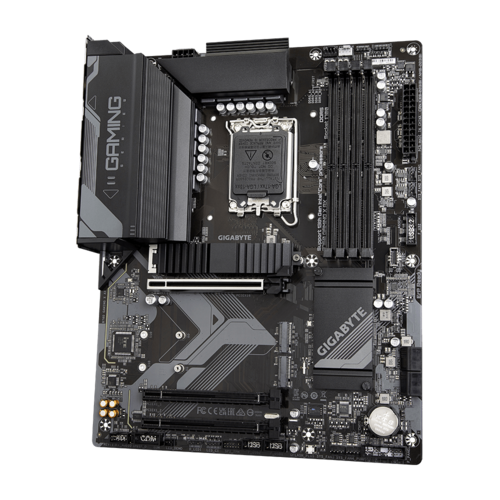

B760 GAMING X AX (rev. 1.x) Motherboard - Image 3

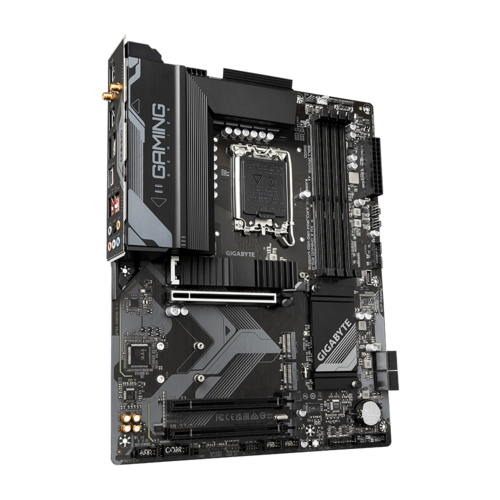

B760 GAMING X AX (rev. 1.x) Motherboard - Image 4

B760 GAMING X AX (rev. 1.x) Motherboard

  • Supports Intel® Coreâ„¢ 14th/13th/12th Gen processors
  • Hybrid 8+1+1 Phases Digital VRM for unparalleled performance
  • Dual Channel DDR5 with 4 DIMM slots and XMP support
  • Next-gen storage: 3 PCIe 4.0 x4 M.2 connectors
  • Advanced thermal design with M.2 Thermal Guard for VRM and SSD stability
  • EZ-Latch PCIe 4.0 x16 slot with quick release design
  • Fast networking: 2.5GbE LAN and Wi-Fi 6E (802.11ax)
  • Extended connectivity: Front USB-C® 10Gb/s, DisplayPort, HDMI
  • Smart Fan 6 with multiple temperature sensors and hybrid fan headers with FAN STOP
  • Q-Flash Plus: Update BIOS without CPU, memory, or graphics card installed
Category: Tag: Brand:
Quote Now
  • CPU Support: LGA1700 socket supporting 14th, 13th, and 12th Gen Intel® Coreâ„¢, Pentium® Gold, and Celeron® processors. L3 cache varies by CPU.
  • Chipset: Intel® B760 Express Chipset
  • Memory:
    • Supports DDR5 7600(O.C.) to 4000 MT/s memory modules
    • 4 x DDR5 DIMM sockets, up to 256 GB total (64 GB per DIMM)
    • Dual channel memory architecture
    • Supports ECC and non-ECC un-buffered DIMMs
    • Supports Extreme Memory Profile (XMP)
  • Onboard Graphics:
    • Intel® HD Graphics support
    • 1 x DisplayPort (4096×2304@60Hz, DisplayPort 1.2, HDCP 2.3)
    • 1 x HDMI port (4096×2160@60Hz, HDMI 2.1, HDCP 2.3)
  • Audio: Realtek® Audio CODEC supporting High Definition Audio, up to 7.1 channels, and S/PDIF Out
  • LAN: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
  • Wireless Communication Modules:
    • AMD Wi-Fi 6E RZ608 (MT7921K), Bluetooth 5.2
    • Intel® Wi-Fi 6E AX210 and AX211, Bluetooth 5.3
    • Realtek® Wi-Fi 6E RTL8852CE, Bluetooth 5.3
  • Expansion Slots:
    • 1 x PCIe 4.0 x16 slot (PCIEX16) for graphics card or NVMe SSD
    • 2 x PCIe 3.0 x1 slots (PCIEX1_1, PCIEX1_2)
  • Storage Interface:
    • 1 x M.2 PCIe 4.0 x4/x2 SSD slot (CPU)
    • 2 x M.2 PCIe 4.0 x4/x2 SSD slots (Chipset)
    • 4 x SATA 6Gb/s connectors with RAID 0, 1, 5, 10 support
  • USB Ports:
    • 1 x USB Type-C® (USB 3.2 Gen 2) via internal header
    • 1 x USB 3.2 Gen 2 Type-A (red) on rear panel
    • 1 x USB Type-C® (USB 3.2 Gen 1) on rear panel
    • 3 x USB 3.2 Gen 1 ports (1 rear, 2 internal)
    • 9 x USB 2.0/1.1 ports (4 rear, 5 internal)
  • Internal I/O Connectors:
    • 24-pin ATX main power connector
    • 8-pin ATX 12V power connector
    • CPU and system fan headers (total 5)
    • 2 x addressable LED strip headers, 2 x RGB LED strip headers
    • 3 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • Front panel, audio, USB headers, and S/PDIF Out header
    • Trusted Platform Module header, serial port header
    • Q-Flash Plus button, reset jumper, Clear CMOS jumper
  • Back Panel Connectors:
    • 1 x USB 3.2 Gen 2 Type-A (red)
    • 1 x USB Type-C® (USB 3.2 Gen 1)
    • 1 x USB 3.2 Gen 1
    • 5 x USB 2.0/1.1
    • 2 x SMA antenna connectors (2T2R)
    • 1 x DisplayPort
    • 1 x HDMI port
    • 1 x RJ-45 Ethernet port
    • 6 x Audio jacks
  • I/O Controller: iTE® I/O Controller Chip
  • Hardware Monitoring: Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, and speed control
  • BIOS: Licensed AMI UEFI BIOS with 256 Mbit flash, supports PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features:
    • Supports GIGABYTE Control Center (GCC)
    • Supports Q-Flash and Q-Flash Plus BIOS update
  • Bundled Software: Norton® Internet Security (OEM), LAN bandwidth management software
  • Operating System Support: Windows 11 64-bit, Windows 10 64-bit
  • Form Factor: ATX (30.5cm x 24.4cm)
