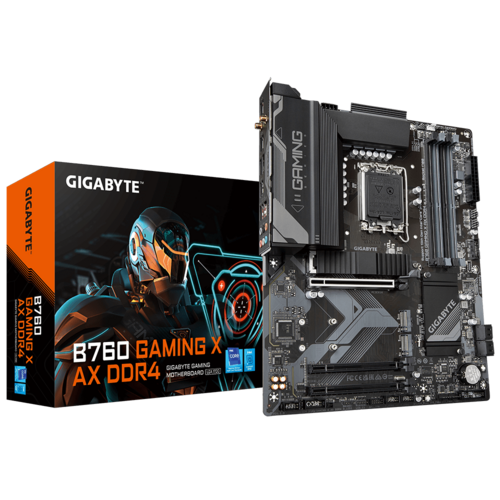

B760 GAMING X AX DDR4 Motherboard

  • Supports Intel® Coreâ„¢ 14th/13th/12th Gen processors
  • Hybrid 8+1+1 Phases Digital VRM for unparalleled performance
  • Dual Channel DDR4 with 4×DIMMs and XMP support
  • Next-gen storage: 3×PCIe 4.0 x4 M.2 connectors
  • Advanced Thermal Design with M.2 Thermal Guard
  • EZ-Latch PCIe 4.0 x16 slot for quick release
  • Fast networking: 2.5GbE LAN & Wi-Fi 6E (802.11ax)
  • Extended connectivity: Front USB-C® 10Gb/s, DP, HDMI
  • Smart Fan 6: Multiple sensors & hybrid fan headers with FAN STOP
  • Q-Flash Plus: BIOS update without CPU, RAM, or GPU
Category: Tag: Brand:
Quote Now

Overview

The B760 GAMING X AX DDR4 is an ATX motherboard designed for performance and compatibility with Intel’s 12th, 13th, and 14th Gen Core™, Pentium®, and Celeron® processors. It supports DDR4 memory, advanced storage options, next-gen connectivity, and high-speed networking—perfect for gamers and PC builders seeking reliability and speed.

CPU & Chipset

  • Socket: LGA1700
  • Supported CPUs: 12th/13th/14th Gen Intel® Coreâ„¢, Pentium® Gold, Celeron®
  • Chipset: Intel® B760 Express

Memory

  • 4 × DDR4 DIMM slots, up to 128 GB
  • Supports speeds up to 5333 MT/s (OC)
  • Dual-channel architecture
  • Supports XMP, ECC (non-ECC mode), and non-ECC unbuffered DIMMs

Graphics Output

  • Integrated Intel® HD Graphics (depends on CPU)
  • 1 × DisplayPort 1.2: up to 4096×2304@60Hz
  • 1 × HDMI 2.1: up to 4096×2160@60Hz

Audio

  • Realtek® Audio CODEC with 7.1-channel support
  • Supports S/PDIF Out

Networking

  • LAN: Realtek® 2.5GbE
  • Wi-Fi (Rev. 1.0): AMD Wi-Fi 6E RZ608 + Bluetooth® 5.2
  • Wi-Fi (Rev. 1.1/1.2): Intel® Wi-Fi 6E AX210/AX211 + Bluetooth® 5.3

Expansion Slots

  • 1 × PCIe 4.0 ×16 (CPU)
  • 2 × PCIe 3.0 ×1 (Chipset)

Storage

  • 3 × M.2 (PCIe 4.0 x4/x2, up to 22110)
  • 4 × SATA 6Gb/s with RAID 0/1/5/10 support

USB Connectivity

  • Rear I/O:
    • 1 × USB 3.2 Gen 2 Type-A (red)
    • 2 × USB 3.2 Gen 1
    • 1 × USB 2.0/1.1
    • 4 × USB 2.0/1.1 (via hub)
  • Internal:
    • 1 × USB 3.2 Gen 2 Type-C® header
    • 1 × USB 3.2 Gen 1 header (2 ports)
    • 2 × USB 2.0/1.1 headers (4 ports)

Internal Connectors

  • 1 × 24-pin ATX power
  • 1 × 8-pin CPU power
  • Fan headers: CPU, pump, system fans
  • 2 × ARGB + 2 × RGB headers
  • TPM, SPDIF, serial, audio, front panel headers

Rear Panel I/O

  • 1 × USB 3.2 Gen 2 Type-A (red)
  • 2 × USB 3.2 Gen 1
  • 5 × USB 2.0
  • 1 × DisplayPort, 1 × HDMI
  • 1 × RJ-45 LAN
  • 6 × audio jacks, 2 × antenna ports

Monitoring & BIOS

  • Voltage, temperature, fan speed, and water flow monitoring
  • Fan/pump speed control support
  • 256 Mbit AMI UEFI BIOS
  • Q-Flash & Q-Flash Plus

Software

  • GIGABYTE Control Center (GCC)
  • LAN bandwidth software, Norton® Internet Security (OEM)

OS Compatibility

  • Windows 10 64-bit
  • Windows 11 64-bit

Form Factor

  • ATX – 30.5 cm × 24.4 cm
