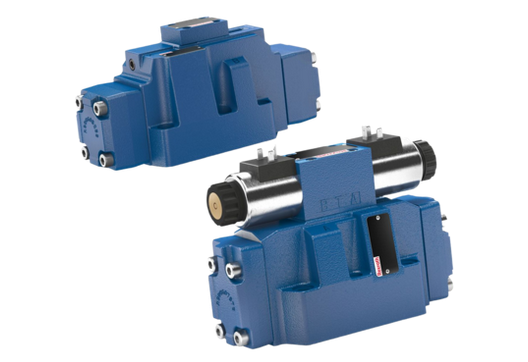

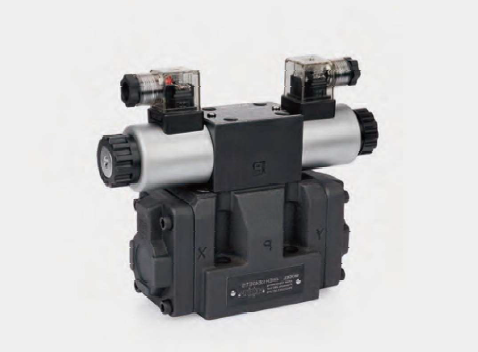

4WEH Electro-Hydraulic Directional Control Valve
Max Pressure (Port A, B, P)28 MPa
Max Pressure (Port T)21 (DC), 16 (AC) MPa (internal leakage)
31.5 MPa (external leakage)
Max Pressure (Port Y)21 (DC), 16 (AC) MPa (external control)
Max Control Pressure (Port X)25 MPa
Available VoltageDC 12V, 24V, 48V
AC 110V, 120V, 220V, 240V
Size10, 16, 22, 25, 32
Protection LevelIP65
